argento espulso ferrovia scanalato di alluminio della struttura di montaggio del tetto 10-12um che anodizza le staffe di supporto solari 6005-T5
ContPerson : Hanna
Numero di telefono : 86-18702773499
WhatsApp : +8618702773499
| Quantità di ordine minimo : | insieme 5 | Prezzo : | USD800-2000/set |
|---|---|---|---|
| Imballaggi particolari : | Imballaggio standard dell'esportazione | Tempi di consegna : | 15-25 giorni del lavoro |
| Termini di pagamento : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Capacità di alimentazione : | 30MW/month |
| Luogo di origine: | La CINA | Marca: | TIANFON |
|---|---|---|---|
| Certificazione: | SGS,ISO 9001,ISO 14001,OHSAS 18000 | Numero di modello: | Mucchi a terra della vite |
|
Informazioni dettagliate |
|||
| Installi il sito: | Tutti i tipi di suoli | Materiale: | Acciaio Q235B |
|---|---|---|---|
| Diametri: | 76 mm~200 millimetro | Spessore: | 3~3.5mm |
| Anticorrosivo: | La immersione calda di alta classe ha galvanizzato | Lunghezza: | 500~2500 millimetri |
| Evidenziare: | 2500mm Ground Mounting Screw Pile,500mm Ground Mounting Screw Pile |
||
Descrizione di prodotto

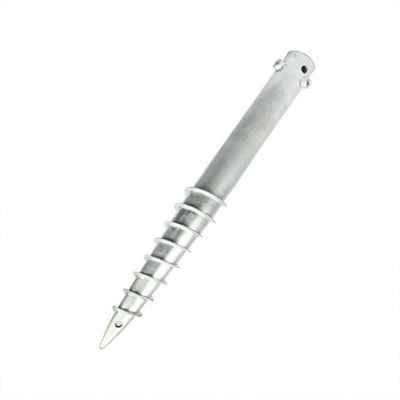

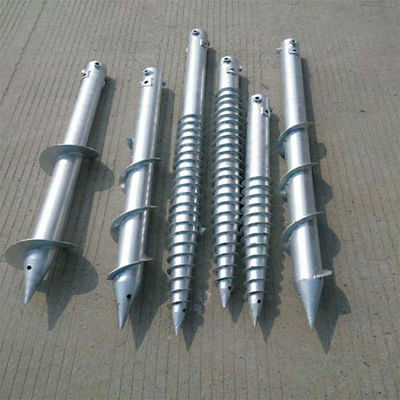

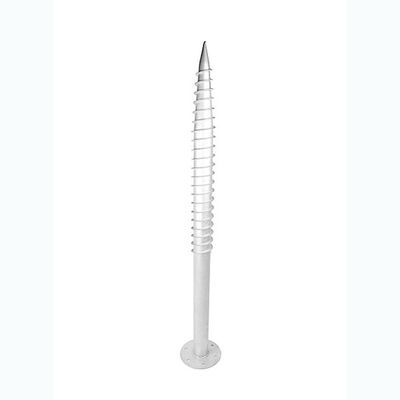

500~2500mm Length Customize Design Ground Mounting Screw Pile Driving Rack
Ground Screw Piles is the preferred foundation in many applications, such as Photovoltaic Solar Farm construction, Timber-frame Housing, Timber Decking, Street Light and Fence construction, Temporary Site Accommodation, Bill Board/Advertising Signs and many more applications.
Specifications:
|
Name |
Size(mm) |
Thickness(mm) |
Material |
Surface treatment |
Photo |
|
Piles with flange |
φ 76/89,1000-2000mm(Length) |
4 |
Q235B |
Hot-Dip Galvanizing |
|
|
Piles without flange |
φ 76/89,1000-2000mm(Length) |
4 |
Q235B |
Hot-Dip Galvanizing |
|
|
Steel pipe piles |
φ 76/89,1000-2000mm(Length) |
4 |
Q236B |
Hot-Dip Galvanizing |
|
Products can be customized according to customer requirement.
Features:
☀ Are cost effective
☀ Can be installed through ground water without casing
☀ Can be removed for temporary applications
☀ Are easily transported to remote sites
☀ Typically required less time to install
☀ Torque is a strong verification of capacity
☀ Reduce the number of truck trips to a site
☀ Eliminate concrete curing and formwork
☀ Can be installed at a better angle for added laterial risistance
☀ Can be installed with smaller more accessible equipment
☀ Are installed with low noise and minimal vibrations
☀ Can be galvanized for corrosion resistance
☀ Minimize disturbance to environmentally sensitive sites
Packaging and delivery:
► Port: Tianjin, Shanghai, Qingdao
► Package: strong and long distance transportation package
► Payment Terms: L/C,D/A,D/P,T/T
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
Our Certificates:
