Disponibile OEM/ODM Carport Solar Panel Aluminum Alloy Galvanized Steel
ContPerson : Hanna
Numero di telefono : 86-18702773499
WhatsApp : +8618702773499
| Quantità di ordine minimo : | insieme 5 | Prezzo : | USD500-1000/set |
|---|---|---|---|
| Imballaggi particolari : | Imballaggio standard dell'esportazione | Tempi di consegna : | 15-25 giorni del lavoro |
| Termini di pagamento : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Capacità di alimentazione : | 30MW/month |
| Luogo di origine: | La CINA | Marca: | TIANFON |
|---|---|---|---|
| Certificazione: | SGS,ISO 9001,ISO 14001,OHSAS 18000 | Numero di modello: | Sistemi solari del Carport |
|
Informazioni dettagliate |
|||
| Specificazione: | Come richiesto | Installi il sito: | Apra la terra |
|---|---|---|---|
| Angolo di inclinazione: | 10-60° | Max. Snow Load: | 1.4KN/m2 |
| Velocità del vento massima: | 60M/S | Materiale: | Al 6005-T5 & SUS 304 & acciaio galvanizzato caldo |
Descrizione di prodotto
1.4KN/M2 Max. Snow Load Stainless steel SS304 Hot Galvanized Steel Solar PV Carport
Most of the photovoltaic carports are modular in design, which can be used alone or in multiple combinations for easy expansion, ranging from a few parking spaces to hundreds of parking spaces, which is relatively flexible. If ordinary photovoltaic modules are used, the overall cost is lower. If the installed capacity is large, the rate of return is high and the investment recovery period is short.

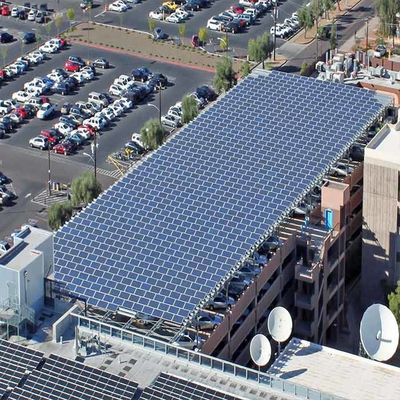

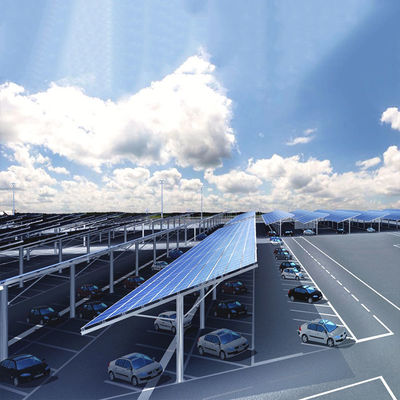

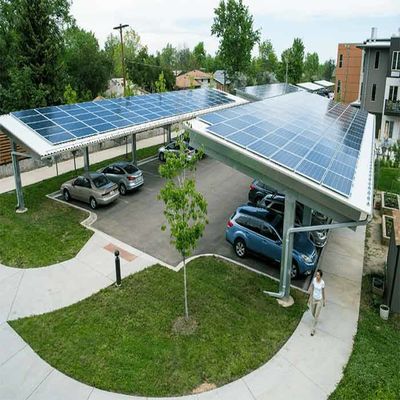

Solar carports and canopies can be regarded as real, very high ground-mounts. They are very common in commercial settings, especially in schools and business campuses. The reinforced concrete foundation supports huge steel beams and supports the solar panels overhead.
Our carports can defeat strong wind(60m/s) and the high snow load(1.4KN/m2) and can be corrosion resistant(the carport are hot- galvanized finished). It is long life as the solar panel, for 25 years.
Product Datas:
Application: Private, Government and Enterprise’s Parking Lot
Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um
Surface Treatment: Hot-Dipped Galvanization or Anodizing
Fastener: Stainless steel SS304
Width of space: 2.5~3m
Length of space: 6m
| Installation Angel | 5deg-15deg |
| Color | Natural or Customized |
| Fastener | Stainless steel SS304 |
| Span(E-W) | 5000mm |
| Standard ground clearance | 2500mm |
| Panel array | Landscape |
| Max Wind Speed | up to 42m/s |
| Max Snow Load | up to 1.4KN/m2 |
| Support system | columns, inclined beams, purlins |
The support system mainly includes supporting columns, inclined beams fixed between the supporting columns, purlins connected to the inclined beams for supporting the solar cell module array, and fasteners for fixing the battery module array.
Product Feature:
Ⅰ. Competitive price
Ⅱ. Compatible with a variety of foundation and most module types
Ⅲ. Durable, anti-corrosion
Ⅳ. Quick, easy to install while remaing cost competitive
Ⅴ. Complete structural analysis
Ⅵ. Complete documentation and system drawings
Ⅶ. 10 year durability warranty
Installation:
Packaging & Delivery:
► Port: Tianjin, Shanghai, Qingdao
► Payment Terms: L/C,D/A,D/P,T/T
Certification:
